Rotary Printing Option for XPJ-661UF (Printer not included)

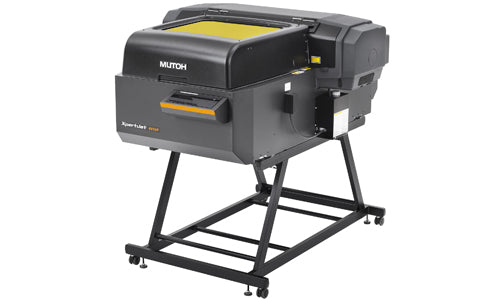

Specifically developed for Mutoh’s XpertJet 661UF A2+ 6-color flatbed UV LED printer
(CMYK, White & Clear inks), Mutoh’s rotary printing option will allow worry-free 360-degree direct printing onto cylindrical objects with smooth surfaces and even weight distribution.

The rotary rollers will precisely rotate the cylindrical object under the head shuttle, ensuring maximum print quality. Equipped with a carrying handle, the rotary printing option can easily be loaded and unloaded.

Setup is done in no time via a wizard integrated in the XPJ-661UF machine firmware. Job preparation for cylindrical objects is fully integrated in the standard driver software so that jobs can easily be positioned and scaled in function of the target object diameter and position.

A ruler alongside the object will facilitate the positioning of one or multiple cylindrical objects. Diameter adjustment is fast and easy using thumbscrew adjusters.

Technical Specifications:

Minimum Object Diameter: Ø 30 mm (1.18”)
Maximum Object Diameter: Ø 120 mm (4.72”)
Diameter Ranges: Narrow range: Ø 30 mm (1.18”) - Ø 80 mm (3.14”), Wide range: Ø 60 mm (2.36”) - Ø 120 mm (4.72”)
Maximum Object Mass: 1 kg (2.2 lbs)
Dimensions: 638 × 568.5 × 173.0 mm (25.12" x 22.38" x 6.81")
Weight: 5.6 kg (12.3 lbs)
