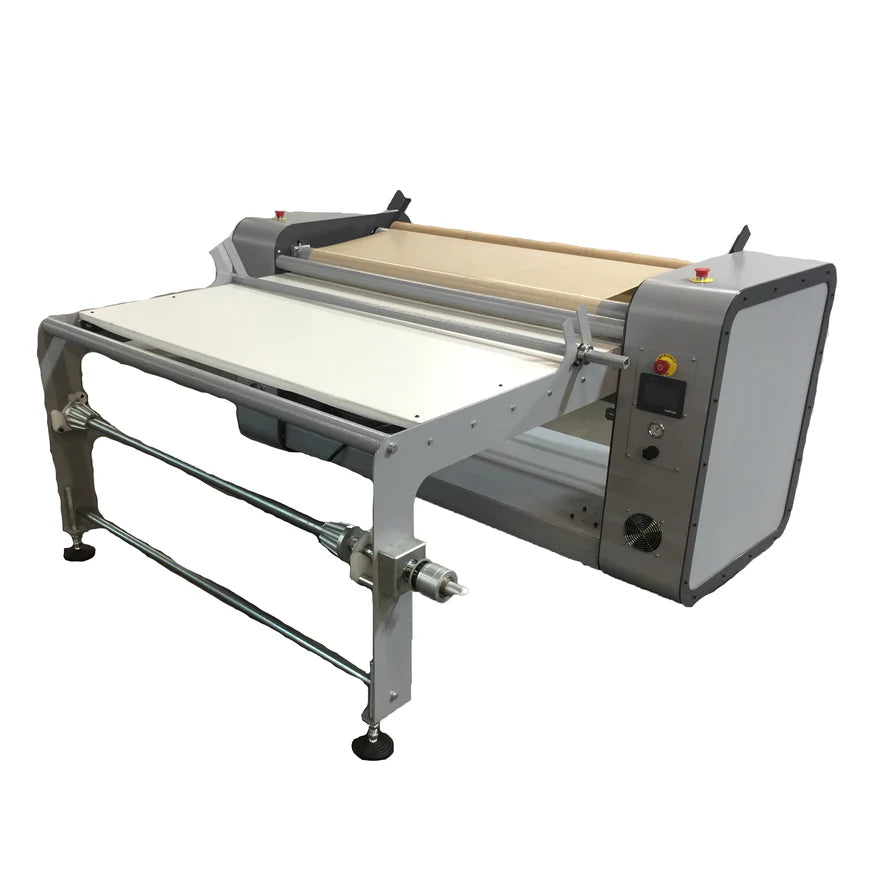

Practix OK-07 Rotary Heat Transfer Machine with a 66” transferring platform.

The oil filled heated drum is 7″ (178 mm) in diameter and has 240 degrees of wrap achieving faster production speeds than most comparable models.

This model can be used for transferring continuous or roll materials. This heat transfer machine is small and affordable, offering the Practix high quality innovative engineered design using a heavy duty frame, automation, and best quality electrical and pneumatic components like all Practix heat transfer equipment, including sublimation machines, lamination machinery, and embossing equipment.

Key Features:

• 4″ Touch screen control for all machine functions and programs for recipe setup
• Digital speed controller
• 2 unwinds/2 rewinds with independent pneumatic adjusting for more tension or brake
• 3″ chucks for all unwind and rewind shafts
• Reversing capability
• Safety systems (emergency stops and hand protection at entry)
• Automatic cool down

Specifications of the OK-07 include:

• Belt Width 48” (1200mm) / 66” (1700mm)
• Drum Diameter 7” (178 mm)
• Max. Temperature 450 F (240 C)*
• Max. Belt Speed 5 ft/min (1.5 m/min)
• Power Supply 12 kW/ 13kW
• Motor 1/4 H.P
• Air Supply 100 PSI 0.5CFM
• Weight 2000 lb (900 kg) 2400 lb (1089 kg)
