If you own a Mutoh XpertJet and ValueJet Printer, to maximize the lifetime of all the parts exposed to ink, it is crucial to carry out some easy CR maintenance.
The most important maintenance actions are: Washing away ink remains from parts that are not (easily) accessible, avoiding the ink drying out, and possibly causing blockage. Regularly remove ink remainders from accessible parts.
Now let’s take a more detailed look at how to perform CR maintenance on Mutoh XpertJet and ValueJet printers with current firmware.

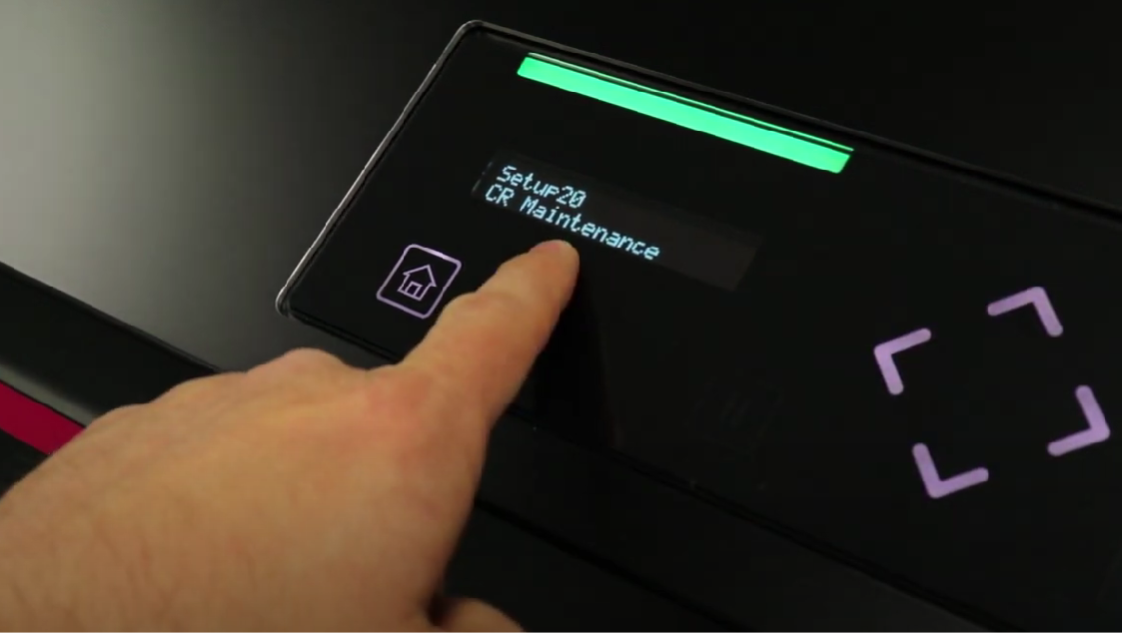

Start by pressing the “Menu” key, then on the touchpad press the “right arrow”, and scroll up to “Setup20 - CR Maintenance” menu option. Once there press the “right arrow” key and hit “Enter” to start the CR-maintenance. This will shuttle the carriage to the left side of the printer so we can access it through the maintenance doors.
Open the covers and lay down a paper towel in front of the maintenance station this is gonna keep everything nice and clean and limit any ink drips we might have.
Source: Mutoh
Take our swab and put some cleaning solution on it. Make sure not to put too much so that it drips off, put only just enough to wet it.
Start by cleaning the cap located here (see image below) go ahead and use your swab and clean the rubber seal around the cap, make sure to remove any dust or ink buildup that you might find.
Source: Mutoh
Source: Mutoh
Next, clean the wiper which is located just to the left of the capping station. Take your swab and make sure to clean both sides and the top of the wiper, removing any ink buildup or dust.
Source: Mutoh
Head over to the left side of the printer take a new clean swab with cleaning solution on it, and carefully clean the bottom edges of the printhead. Make sure you don't actually touch or clean the nozzle plate as this may cause damage to the brand.
Source: Mutoh
It's also recommended that you clean the black ramps on both sides of the printhead ain't dust and debris and filled up here and we want to make sure any of that is removed
Source: Mutoh
Next, flush the cap. Start by pressing the “down arrow” button on the control panel while we are in CR maintenance mode. This will start the maintenance station pump.
Source: Mutoh
While the pump is running, take a cleaning solution and flood the cap. Once done, turn off the pump by ´pressing the “down arrow” button again.
Source: Mutoh
Finally, close all of our covers we have pretty much completed most of our CR maintenance. For Ricoh solvent machines we recommend performing CR maintenance two to three times a week if you're an average print shop but you may want to clean your printer every day if you're in a high-production environment.
Source: Mutoh
To end CR maintenance mode, just press the enter button. This will shuttle the carriage back to the home position. Press the home button once more to back out with the menu. If you're on an older ValueJet hitting the cancel button a few times we'll get you back to print-ready mode.
Source: Mutoh
Please be aware that next to this periodical maintenance, a certified Mutoh Technician needs to perform yearly maintenance as well. Contact Us for more information.
